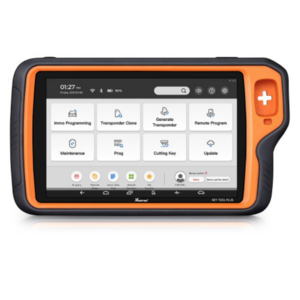

VVDI Key Tool Plus :

• Global advanced version
• Combines functions of VVDI2, VVDI MB, Key Tool Max, VVDI BIM, VVDI PROG , OBD Helper and available to control Xhorse key cutting machines.
• Bind with Xhorse key cutting machines to get free MB BGA token everyday.  ID48 and read MB Key password online will need token, but both can read xhorse bonus points.
• Multi-Language: English, Turkish (more language will be developed in the feature)
• Toyota H smart key AKL without emulator
• Free Update Online
• 1 Year warranty

New Update:  Add Remote Online-cloud Recognition function (Feb. 2021)
Xhorse Key Tool Plus User Manual

KEY TOOL PLUS Has It All.

A Computer, A Mobile Phone, A Tablet, An Immo Programmer, A Remote Maker, A Transponder Generator, A Programmer, A Frequency Tester


PAREMETERS

• CPU: 8-core 2GHz
• RAM+ROM: 4G+128G
• Operation System: Android 9.0
• Screen Size: 10.1" HD Anti-glare; Anti-fingerprint. Super 10.1" anti-glare display enables top operation experience.
• Rear HD Camera: 13.0MP. The 13MP rear camera is designed to fit in multiple scenarios perfectly.
• Battery Capacity: 10000mAh. Long battery life and PD3.0 fast charge help keep you productive throughout your day.
• Charging: 30W Super Fast Charge
• Bluetooth: 5.0 Bluetooth
• WIFI: 2.4G/5G

ADVANCED PROCESSOR

4xCortex-A53 up to 2.3Ghz

4xCortex-A53 up to 1.8Ghz

Memory 4G+ Storage 128G

Resolution up to FHD+ (2,400*1,080)

Xhorse Key Tool Plus Basic Functions:

Supports basic functions of a Key Tool, such as remote generating, cloning, transponder detection, and IMMO programming for VW & Audi, BMW, and Mercedes Benz.

• Transponder Detection
• Transponder Cloning
• Transponder Generation
• Remote Cloning
• Remote Generating
• Frequency Detection
• Remote Renew
• IC/ID Clone
• Vehicle Error Light Reset
• Key Cutting Machine Control
• Built-in OBD matrix switch
• Radio frequency simulator
• Integrated Key Identification Coil
• Mercedes Benz infrared read head
• Toyota Smart key programming without simulator (Smart Key Simulator)
• Long-distance IMMO collection
• Chip pin detection
• More functions to be added in future updates

IMMO Key Programming Function:

KeyTool Plus IMMO Function Bullet Point:

Renault 4A Smart Card/4A Folding key (Kadjar, Koleos etc)	Add Key, All Keys Lost, Generate dealer key via OBD auto-backup dump, won’t kill car
Mercedes Benz FBS3	Add key/all keys lost, fast password calculation, (with Benz non-removal adapter, included in the package) High success rate
BMW	OBD add key/all keys lost CAS1 CAS2 CAS3+ CAS4 CAS4+ FEM BDC
VAG	IMMO2 IMMO3 IMMO3.5 IMMO4 IMMO5 MQB add key, all keys lost
VAG online	IMMO4 add key/AKL, A6 Q7(J518) All Keys Lost, MQB add key/AKL, 5C add key, fast speed, no risk won’t kill car with vvdi remote
Toyota 8A mechanical key	Add key and All keys lost via OBD. AKL without removing immo box. require 8A AKL adapter
Mitsubishi	Add key, all keys lost, generate dealer key via OBD (Outlander ASX etc)
Porsche	New Porsche 2018 up generate dealer key, OBD programming (key tool plus read dump/generate key/add key via OBD)
Peugeot Citroen DS	Read Pin, Add key and All keys lost via OBD
Ford (-2018)	Pre-2018 all series smart key programming without PIN code
Ford 2019-	2019 up Focus, Escort without backup PFLASH, safe, no risk.
Jeep Chrysler Dodge	2018 up Read PIN and Program key via OBD
Fiat Viaggio Palio	Add key, AKL and generate dealer key via OBD
Buick Chevrolet Cadillac	Read PIN Code (ID46), part of vehicle with 4D/47 PIN Code online inquiry
Hyundai Kia	46, 47, 8A read pin code and program key via OBD
Honda 2019 up AKL	10th Generation Accord, Null, Fit, Inspire AKL via OBD
Volvo (-2016)	None-smart key via OBD, non-smart key by removing CEM, smart key by removing CEM/KVM
Chinese Cars	OBD password calculation for major car brands and models

WE MAKE IT FIT FOR MORE LUXURY CAR BRANDS

Support IMMO programming on luxury car brands - Benz, BMW, Audi, VW

KEY TOOL PLUS provides users with functions including key programming, key learning, ECU coding/ adaption/ replacing, diagnostic function, etc. to best resolve most problems they met in immo programming for Volkswagen and
AUDI cars.

VW & Audi:

• 3rd / 4th / 5th generation
• MQB
• MED17/EDC17

KEY TOOL PLUS can achieve BMW CAS1 CAS2 CAS3 CAS3+ CAS4  CAS4+ OBD key learning, FEM/BDC key programming, File Make Key, ECU ISN reading, ECU and CAS synchronization, etc. Getting work done has never been easier.



BMW IMMO Programming

• CAS3/CAS3+
• CAS4/CAS4+
• FEM/BDC
• ECU ISN Reading Function

KEY TOOL PLUS offers users all-rounded and professional security solutions for Mercedes-Benz. The device helps with FBS3 Keyless-go smart key programming, all key lost, adding keys, enabling & disabling keys and 曰S/EZS，ELV, ECU, gearbox, ISM replacing.


Benz IMMO Prorgamming

• FBS3 standard keys and FBS3 keyless-go keys
• Smart keys, all keys lost, add keys, enable & disable keys
• EIS/EZS, ELV, ECU, gearbox, and ISM replacement



Other Car Models Supported

For Toyota
For Honda
For Mazda
For Ford
For Cadillac
For LandRover
For Peugeot
For Kia
For Buick
For Chevrolet
For Volvo
For Mitsubishi
For Nissan
For Suzuki

KEY TOOL PLUS supports over 20,000 car models worldwide. We can select the car brands and car models on the immo programming interface. On this smart platform, we can easily find the car models we need by brand area, brand name, and A-Z word search.

Transponder & Remote Function:

The Most Comprehensive Database of Vehicles Ever.

Transponders

• ID46 online calculation
• ID48 (96 bit) online calculation
• Toyota H(8A) online calculation
• Transponder generation and cloning of over 850 car models
• Special transponders and special cars and old car models

Remotes

• Support remote generation, smart key generation, frequency detection, remote clone for a variety of car models
• HCS/fix code clone, non-HCS rolling code clone, fix code editing
• PT22XX, LX918, HT6P20, VD5026, AX5326, HT12X fix code editing

COMBINED

Its design concept is to unite the functions of your various devices and offers the advantage of ultra-convenience at hand.


PROG FUNCTION:

Key Tool Plus is designed with Prog function, which can work as a solder-free programmer,  directly reading and writing common modules and chips for plently pof car models. Xhorse is the first to offer this tergrated solution.

KEY TOOL PLUS supports reading and writing common modules and chips. It covers "EEPROM and FLASH", "IMMO", "Instrument", "Airbag", and "ECU", etc.



Supported EEPROM and FLASH
ATMEL
Mitsubishi
Winbond
Catalyst
ST
XICOR
Microchip
SEIKO
Xhorse
MXIC
Toshiba

Support Modules

BMW: CAS3/CAS3+/CAS4/CAS4+/FEM/FRM/BDC
BENZ: EIS/EIZ
LANDROVER: RFA
PORSCHE: BCM
VOLVO: CEM/KVM
BMW/AUDI/VW: ECU AND MORE
HONDA/HYUNDAI/KIA: MB91F dashboard

(Note: To complete certain functions, users need to connect KEY TOOL PLUS to the specific adapters and get the required model prompt on the interface. The function is only effective on the advanced edition.)



WHAT WE CAN COMPLETE BY PROG FUNCTION ON KEY TOOL PLUS?

• Support EEPROM reading and writing: support reading & writing most types of transponders in the market.
• Support BMW immo module programming covering CAS3, CAS3+, CAS4, CAS4+, BDC, FRM, and FEM.
• Support Land Rover RFA module reading and immo programming.
• Support Porsche BCM programming.
• Support read ECU with CAN on AUDI, BMW, and VOLKSWAGEN.
• Support Instrument programming on HONDA, KIA, and HYUNDAI.



IMMO DATA TOOL (FILE MAKE KEY)

Supports Jaguar - Land Rover - Porsche - Volvo - Mitsubishi - and others

For some cars, key programming and other settings can't be finished via OBDII. KEY TOOL PLUS gives amazing strength to solve the dilemma by delivering File Make Key function which can be used to add keys for them. This
very function features generating transponder via reading related transponder data of the car immo module directly.

[ File make key, to generate a car key via a data file. Users need to use the specific device to read the immo data, and generate a boot transponder to directly start the car, no need to match the original car.(Users may need to rewrite the data to the immo box when doing the programming process on some car models.) ]

Xhorse PAD supports File Make Key function for common car models and motorcycles. we can easily find the car models we need by brand area, brand name, and A-Z word search.

WE "LIBERATE" YOUR APPLICATION PROGRAM INTERFACE

Maintenance Function

Meet Your Work Demands in Every Way. KEY TOOL PLUS supports maintenance light reset, electric parking brake, TPMS, battery matching, throttle program, injector programming, steering angle programming, bitting decode, gearbox programming, headlight programming, etc.

More maintenance functions will be released soon.

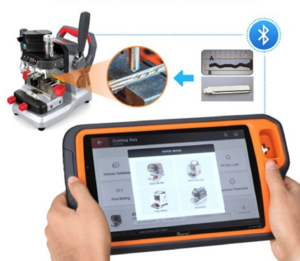

【CONTROL KEY CUTTING MACHINES DEVELOPED BY XHORSE】

KEY TOOL PLUS is available to control the key cutting machines(CONDOR, DOLPHIN, and PANDA), to perfectly work as an operation screen. By using KEY TOOL PLUS, completely free your mobile phones.


Cloud Diagnosis Mode-C:
After keytool plus start the C mode of cloud diagnosis, it will generate tghe local C-terminal ID and send C-terminal ID to customer who provide remote service. Customer use cloud diagnosis B-terminal Xhorse device, after inputting C ID and connect to the Plus pad for remote diagnosis, programming, coding, matching, maintenance and other functions.

Other Special Functions:
Remote renew, Set type of VVDI super chip, VVDI Special TP, Unlock Toyota Smart Key, Detect remote, VVDI remote repair calibration, VVDI smart key clone, VVDI smart key customization, remote charge battery, Honda cycle key renew, 8E remote upgrade/unlock, XM smart key customization, Toyota smart key frequency setting


More Functions coming soon
Eg. OBD diagnosis and MQB49 immo programming have just been released on KEY TOOL PLUS and it’s projected to support DOIP, CAN-FD, Toyota 8A smartkey in the near future.

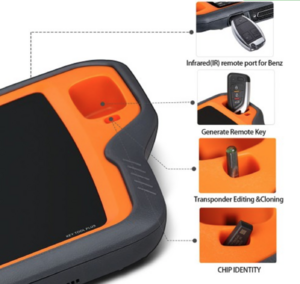

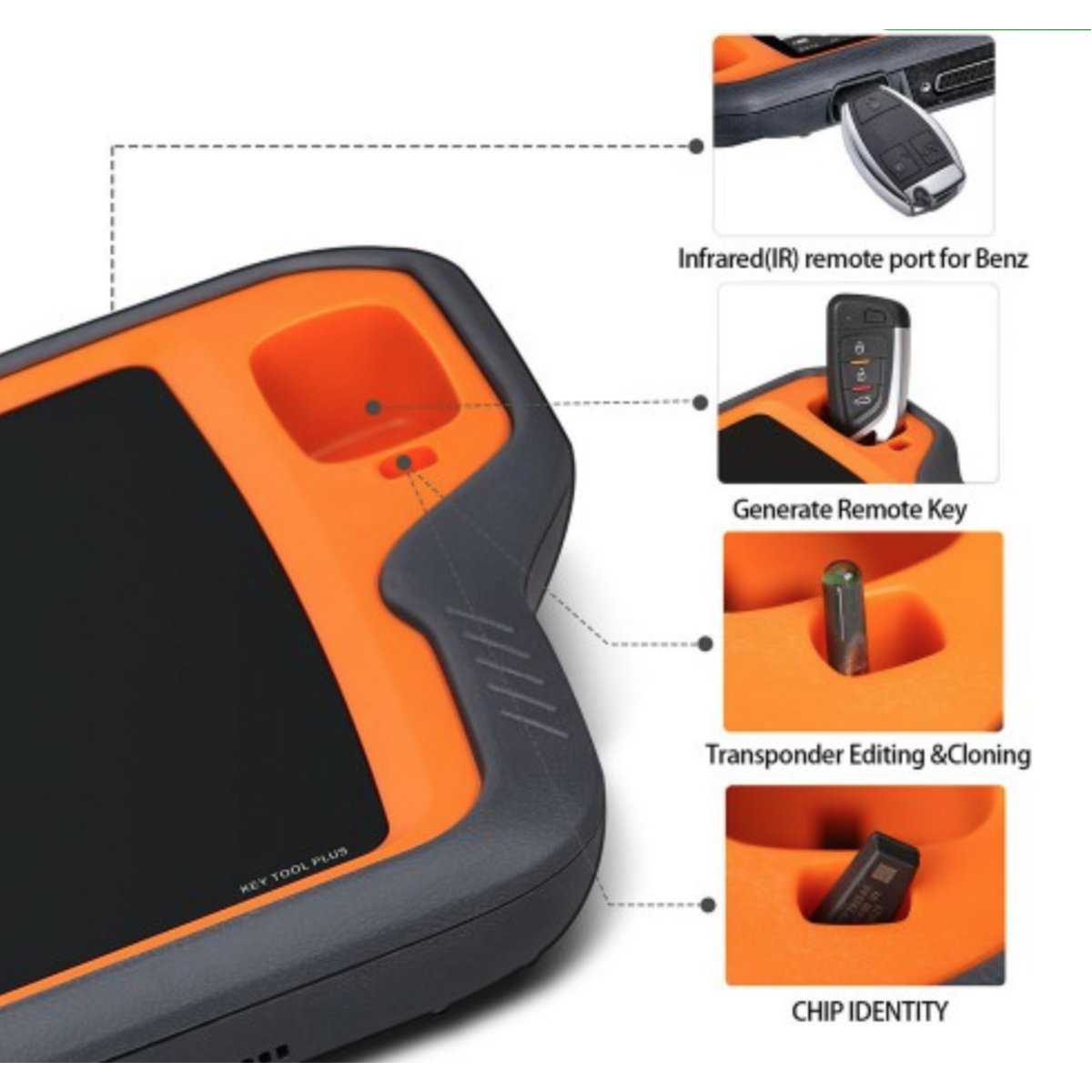

NAME OF PORTS

Light sensor: detect the brightness in the surrounding environment

Detection coil (including 125K low, 13.56M Medium, 300-900M high frequency)

• Support reading, writing, and cloning common immo transponders
• Support reading common ID transponders
• Support reading common IC transponders
• Support frequency detection of common vehicle remotes

Immo transponder placement hole for vehicle immo transponders

USB charging port: support standard fast charge adapter and standard Type-C port DC-5V input.

PS2 port for remote programming

DB15 port: support standard & optional programming adapters with DB15 port

DB25 port for OBD matching

Benz Infrared (IR) port: support IR read Benz FBS3 & FBS4 smart key and support Benz IR reader

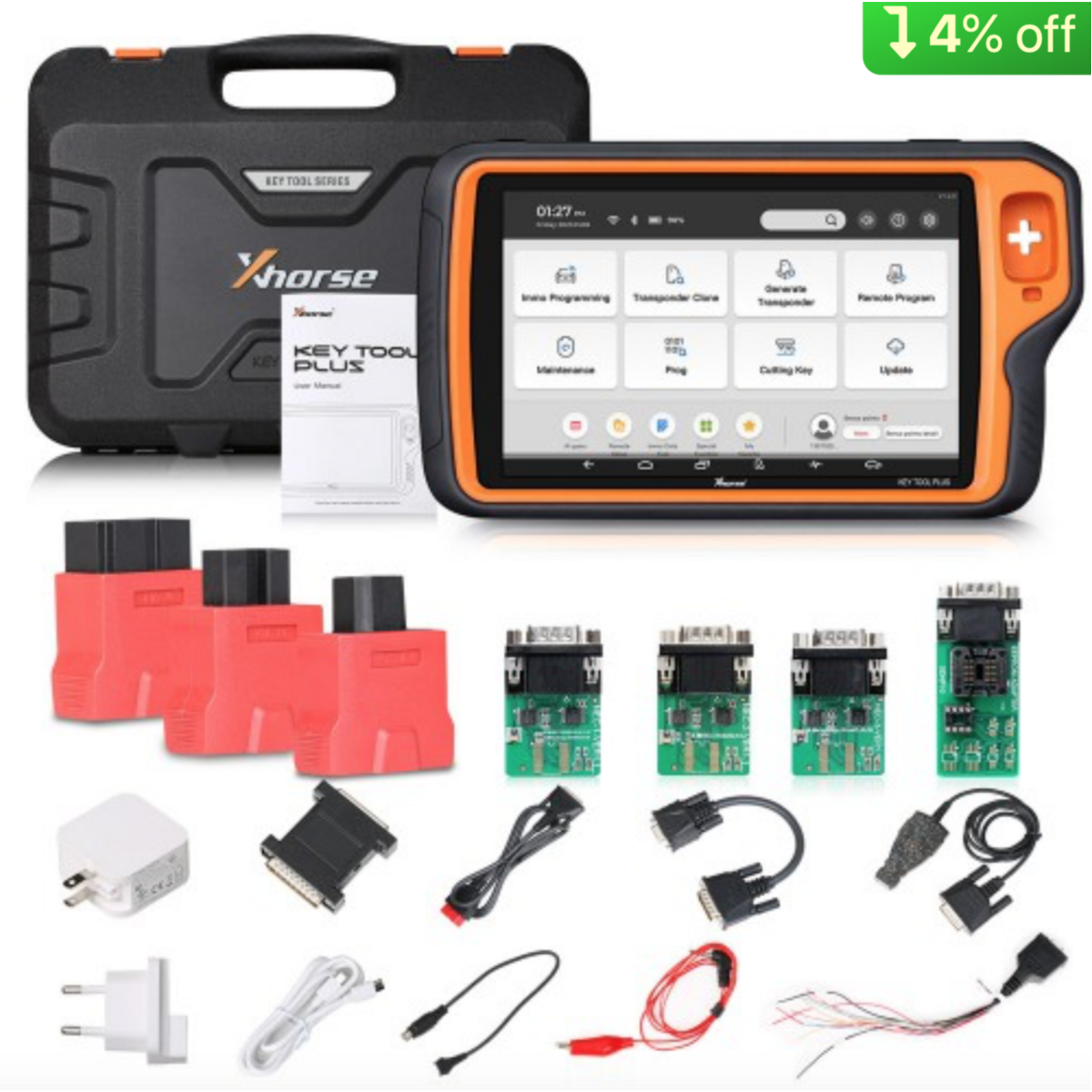

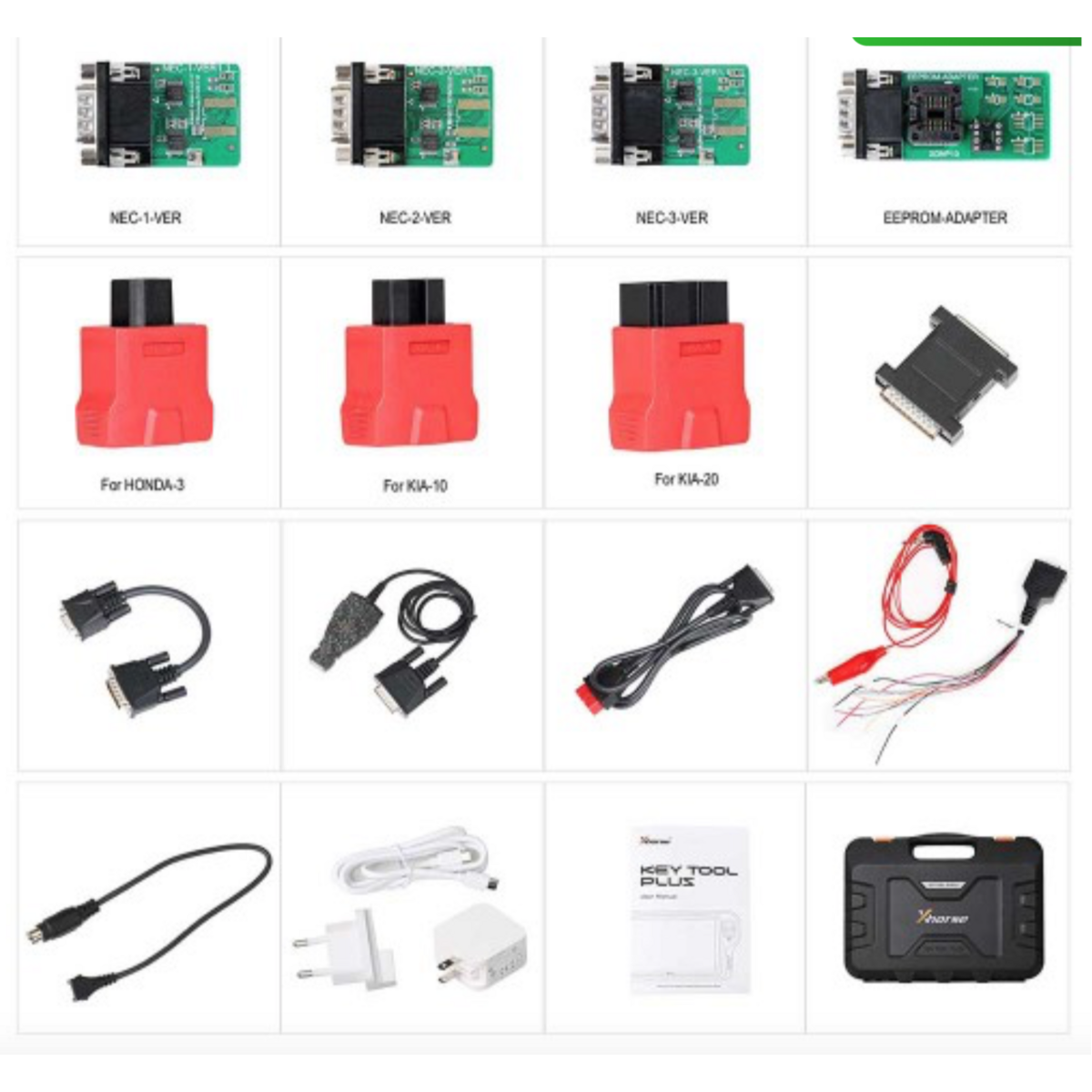

Xhorse VVDI Key Tool Plus Full Package List:

KEY TOOL PLUS
User Manual
Certification and warranty card
Charger
USB3.0 TYPE-C cable
OBD_DB25 cable
OBD_KlA_10 connector
OBD_KIA_20 connector
0BD Honda 3 connector
Remote_PS2 programming cable
Transponder box
Prog_DBI5_15 cable
Prog EEPROM adapter
Benz IR adapter
Benz NEC1 adapter
Benz NEC2 adapter
Benz NEC3 adapter
Benz power adapter
9S12xE cable
MCU cable
