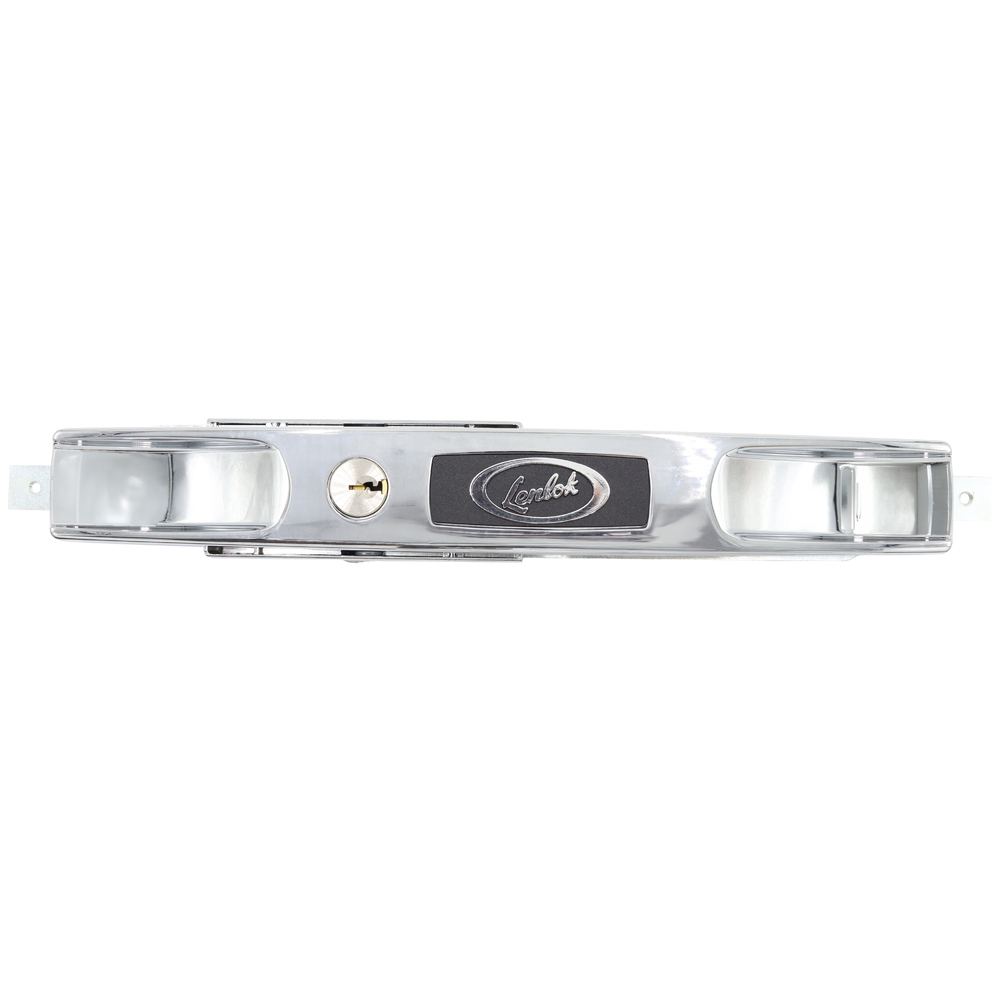

Narrow style version, longer fascia and is distinguished with dual finger grips.

Includes:
1 x Lock Kit
2 x Keys
1 x Lock Fascia

Features:

• C4 4 pin cylinder tumbler
• C4 4 pin cylinder is LKW5 (LW4) keyway.
• C4 4 pin cylinders includes cam screws only (does not include all other cams & screws)
• Ergonomically designed internal operating knob offers a more positive grip
• Lock body designed for minimum protrusion (smaller than previous Lenlok models)
• Barrel & keys supplied along with cams, cams screws, cylinder screws
• The fascia incorporates a patented stainless-steel spring clip to hold the fascia in place during installation making installation easier
• Locking arms have a 19mm throw
• High quality satin chrome finish zinc alloy fascia
• High quality full metal locking mechanism
• Lock body has patented integrated mechanism protectors. These keep the door from applying pressure to the mechanism
• Slide arms are constructed from galvanised steel for increased strength and have threaded holes for the screws making installation easier

Compatibility:

4323 Model - Retrofits to existing market standards (e.g Lenlok 3323)
