The Autel MaxiSys MK906BT Full System Diagnostic Tool Support ECU Coding & Bi-Directional Control

Upgraded 2021 Version of the Maxisys MS906BT

To check what functions are available for each vehicle click here

1. OE-Level Full-System Diagnostic: MK906BT is an affordable tool to access all vehicle systems like engine and transmission, performs OE-level diagnostics such as read/erase DTCs, view data stream, active test, ECU Replacement, Zero Point Calibration (Toyota), Signal Check (Toyota), Initialization (ECU), and Guided Functions (VAG), quickly presents accurate diagnosis results, and significantly improves the convenience of diagnosis.

2. 31+ Maintenance Functions: As the latest version of 2021

3. ECU Coding & Active Test: Enhanced online ECU coding function works for 98% automobiles (including BMW, Volkswagen, Porsche, etc.), allows for enhancing ECU function to fix problems or unlocking hidden functions, such as Auto Lock and Mirror Folding

MaxiSys MK906BT is the latest addition to the MaxiCOM product line of advanced wireless diagnostic devices. The device is based on the Android operating system featured with the best possible coverage of OE-level diagnostics and ECU coding capability.



Features:
Extraordinarily powerful Samsung Exynos Hexa-core processor
8.0" 1024x768 LED-backlit glossy Multi-Touch capacitive display with IPS technology for ultra-mobility
Internal reliable 32GB SSD for better performance
Built-in 8-megapixel rear camera with autofocus and flashlight
Unique ergonomic design with rubberized outer protection and a rugged internal housing
Built-in rechargeable lithium-polymer battery for up to 14 hours of continuous operation
USB, audio and auxiliary ports make it easy to connect accessories
Open source Android Operating System for fast boot-up and multitasking
Smart AutoVIN technology for identifying vehicle easily
Automatic system and software updates with real-time push message notifications via internet
Instant remote control tech support anytime
Cloud-based MaxiFix online community provides a vast database of diagnostic and repair tips and proven filed fixes
Interactive Data Logging sessions enable direct contact with Autel Technical Support for first-hand troubleshooting of diagnostic bugs and errors
One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized


Key Coding & Programming

Functional tests/ Active tests/ Bi-Directional Control

ABS brake bleeding

Oil Rest

SAS calibration

DPF Regeneration

TPMS relearn

Battery Registration

Reset brake pads after replacement, EPB control

Headlamp reset and diagnosis

A/F reset

Clutch Adaptations

Prime fuel pump

Gearbox learn + Calibration

Gear coding + Calibration

Odometer reset and programming

Seat matching - for Jaguar + Land rover

Sunroof programming

Suspension diagnosis and calibration

Throttle position sensor relearn

Turbo diagnosis and initialize / calibration

Window and door calibration


1) Auto VIN
2) Active Test
3)Enhanced ECU Coding

It also features online coding and personalization for high-end vehicles:

1) Supports online coding for BMW;
2) Supports online coding, guided function, modifications for Volkswagen;
3) Supports ECU coding, ECU online coding, and guided function of providing repair tips after
4) Reading DTCs for Porsche;
5) Support ECU online coding for Renault;
6) Support customized configuration for Toyota, Nissan, Peugeot, and more.



Specifications

Operating System: Android? 4.4.2 KitKat
Processor: Samsung Exynos T5260 6-Core Processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15)
Memory: 2 GB RAM & 32 GB ROM
Display: 8.0? LED capacitive touch screen with 1024x768P resolution
Connectivity: Wi-Fi (802.11 b/g/n), USB: 2.0, Mini USB 2.0, Wireless BT V2.1+EDR, Class1, HDMI 1.4a, SD Card (support up to 32 GB)
Camera: 8.0 Megapixel, AF with Flashlight
Sensors: Ambient Light Sensor, G-sensor
Audio Input/Output: Microphone, Dual Speakers, 3-Band 3.5 mm stereo/standard headset jack
Power and Battery: 13.7V/13600mAH Lithium-polymer battery, DC/12V/3A Power Supply
Input Voltage: DC/12 V (9-35 V)
Power Consumption: 5 W
Operating Temperature: -10 to 55°C (14 to 131°F)
Storage Temperature: -20 to 70°C (-4 to 158°F)
Protection: Fully covered with rubber

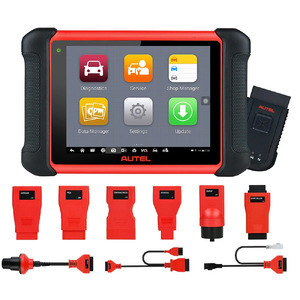

Package List:

1pc x AC/DC Adapter (12V)
1pc x Adapter for GM/Daewoo-12
1pc x Adapter for Benz-38
1pc x Adapter for Mitsubishi/Hyundai-12+16
1pc x Adapter for Honda-3
1pc x Adapter for BMW-20
1pc x Adapter for Kia-20
1pc x Adapter for Nissan-14
1pc x Adapter for VW/AUDI-2+2
1pc x Cigarette Lighter
1pc x MaxiVCI V100
1pc x Lighter Fuse
1pc x Soft Cloth
1pc x Mini USB Cable
1pc x User Manual
1pc x Packing List
1pc x Carrying Case
1pc x Quick Reference Guide



Free Shipping

After sales support

Product will come with a one year warranty

30 day money back guarantee
